MagicSERS3

current stable Version: 3.7.0.9 Download(310Kb)
Manual Download(477Kb)

Language: Delphi 6

Use:
A program for fast Viewing of spectras in txt, spe or thd format, the pictures can be saved. It is possible to search for Peaks and combine spectra to series.

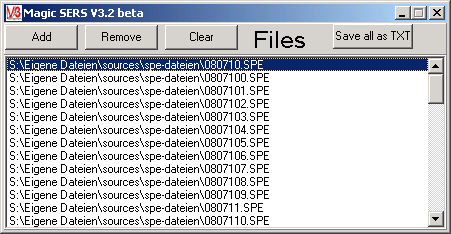

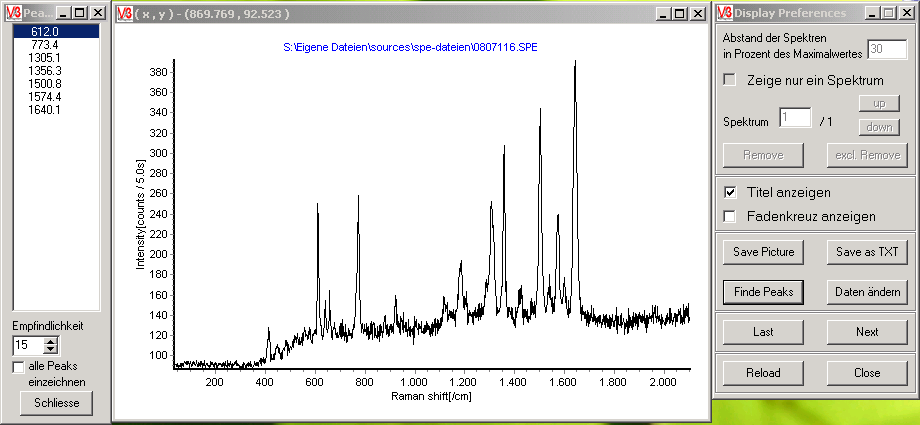

Screenshot vom MagicSERS3-StartFenster Screenshot vom MagicSERS3-Anzeige Features:

Supported Datatypes: SPE Winpec Spectra, THD Timeharp Picoquant, Chr(#9) seperated TXT data.
Fast scrolling through all spectra (keys 'a' and 'd') and series (keys 's' and 'w')
Viewing of some spectra in one graph (optional: normalized)
No limitations of file size and numbers of spectra in one file
Automatic peaksearch for Raman-lines
Configuration of x,y-axis (y-axis automaticly set to logarithmic for THD).
Save Sectrum, copy as text to clipboard for programs like Origin/qtiplot (Ctrl+t), copy as bitmap to clipboard (Ctrl+c), copy as Metafile drawing to clipboard (Ctrl+x)
Show properties saved in the original file, like aquisition time, date, time
Create Scan images from Spectra (or parts of Spectra)

History:

07.04.2009	Removed some Bugs with very big datafiles when scroll through the dataset
01.03.2009	Added Spectra Scan (form an Intensity images out of Spectra) free choice of size and area of the Spectra used for the Picture save as STP for WSxM, click into the Picture shows the Spectrum at this point.
18.11.2008	Bugfix on TXT-Loading
08.05.2008	Crash on "Save all as TXT" found and fixed. (uninitialized value)
20.04.2008	Bugfixing, Properties for THD-Files added.
18.03.2008	Spektra can be normalized via a checkbox
27.02.2007	Minor Bug release
19.02.2007	Switch for logarithmic scale for y-Axis (for THD-files automatical on, for SPE off, TXT use the last setting). Preferenceswindow for "Save all as Text" added, for future extension, at the moment only the 3 lines header can be turned off. First Version of Data-Properties added.. shows Properties like Laser wavelength, Date time, resolution and so on... depending on filetype
10.12.2006	reads THD (Timeharp-Picoquant) files, still BETA! some small bugs removed related to spectra series.
21.05.2006	removed some Bugs relating: Change Data, translations, scaling
21.11.2005	much changing for large SPE-files (>100 Spectra in one File) Now one Spe-file can be theoretically have the size of half of the free RAM (2 times because, the data still must kept twice in RAM for calibration, largest tested file: 20.000 Spektra each 1340 Points = 51.1Mb Thanks to Matthias Steiner for this Data) the copy text function only copy the spectra which are currently viewed (for series)
20.11.2005	With Ctrl+T the Data can be copied as text to clipboard for use in programs like Origin or Qtiplot. Some small bugs removed with large Datafiles. Updatecheck included. new structure in Source code.
07.10.2005	Bug in Text-writing removed. Now the right folder is used
30.09.2005	Change of scale-type possible (Pixel/wavelength/wavenumbers/rel. wavenumbers/Original) for SPE-files. Bug with Windows XP removed: first file at "Save all as text" the '\' was not there. Some translation changed. Picture possible to copy: Ctrl+C Bitmap, Strg+X als EMF (advantage: free scaleable).
30.10.2004	The programm is now packed with UPX... save 60% size
29.10.2004	change of x und y-Axis scaling and change of the axis titles possible
27.10.2004	Drag'N Drop of Files to list or graphic added, automaticly taking of the right x-scaletype (from the SPE-file), Fitroutine for SPE-loading removed (double in the SPE data)
