WSxM-Convert

Current Version: 0.5.2.4
Download Windows-Version(3.24 Mb)
glut32.dll needed for Windows (96 kb)
(Copy to c:\Windows\System or Program folder)

Download Linux-Version(4.9 Mb)

Language: Lazarus/Freepascal

Features:

supported Formats: Omicron Scala *.tlf0 Dateien (Counter Channel (other channels already supported by WSxM)), Nanosurf *.plt5 , Picoquant SymPhoTime .pt3 pictures (partial) and Marc Weber Scan.exe *.dat files

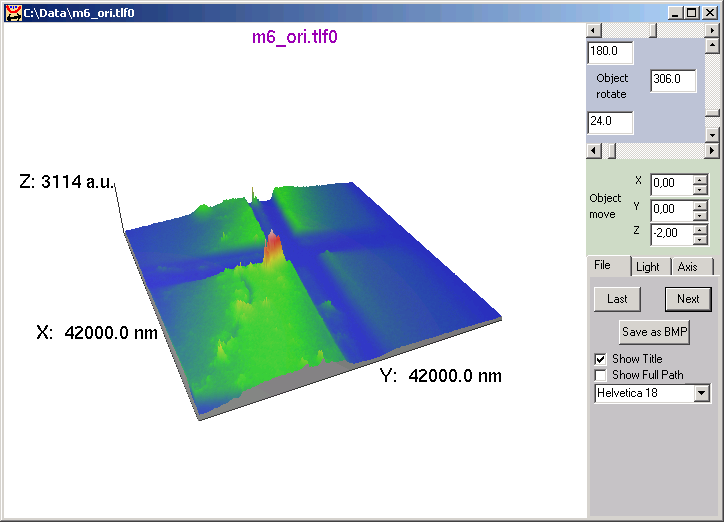

Viewing of files in 3D possible to rotate, move, lightsource movable, Picture saving

Use:
Program to View and convert Scandata of SCAN.EXE, Scala ,SymPhoTime and Nanosurf AFM-Files to STP files for WSxM (www.nanotec.es).

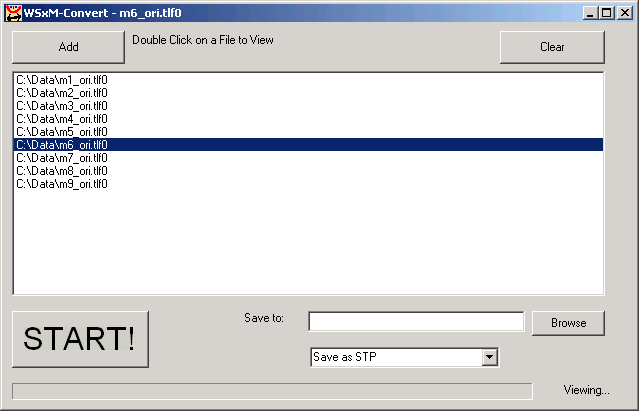

Screenshot of WSxMConvert main window

Screenshots of WSxMConvert

History:

10.03.2009 Bug fixing on load/save of Symphotime data removed
23.02.2009 speed of loading of SymPhoTime Data dramaticly increased.
22.02.2009 added Support for PicoQuant SymPhoTime Scan data, only Picture and only when a PI-710 is used (i have only access to such data, if you are interrested in other Scanner, send me files and description then I will add as well), Drag and Drop of File to Listwindow added, Bug fixing at Linux version
20.03.2007 possible load the created STP again
18.03.2007 conversation from Delphi into Lazarus, Viewing with OpenGL included, Linux Version
27.08.2004 "Z Amplitude: 1 nm" to STP File added, since the new Version of WSxM requires it (V3+)

10.03.2009	Bug fixing on load/save of Symphotime data removed
23.02.2009	speed of loading of SymPhoTime Data dramaticly increased.
22.02.2009	added Support for PicoQuant SymPhoTime Scan data, only Picture and only when a PI-710 is used (i have only access to such data, if you are interrested in other Scanner, send me files and description then I will add as well), Drag and Drop of File to Listwindow added, Bug fixing at Linux version
20.03.2007	possible load the created STP again
18.03.2007	conversation from Delphi into Lazarus, Viewing with OpenGL included, Linux Version
27.08.2004	"Z Amplitude: 1 nm" to STP File added, since the new Version of WSxM requires it (V3+)
